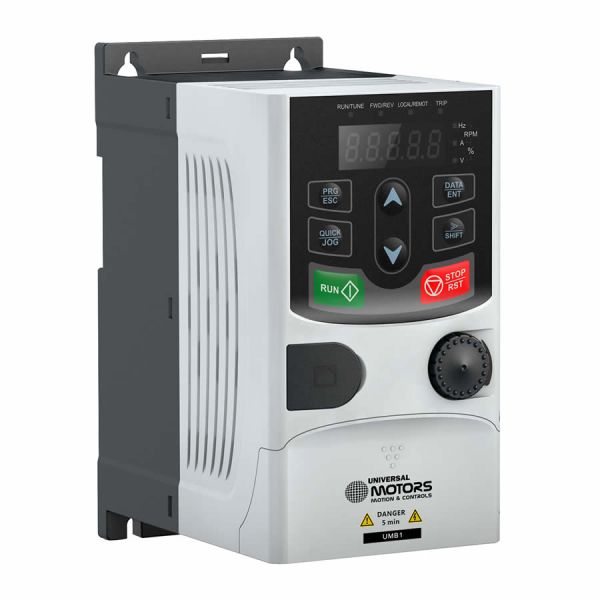

Universal UMB1 0.75kW 1PH 220-240V IP20

Universal UMB1 0.75kW 1PH 220-240V IP20

Universal UMB1 0.4kW 1PH 220-240V IP20

£123.12
Single Phase Inverter IP20 protection EMC Filter optional Control V/F or SVC Sensorless Fire Mode STO
Availability: In stock
SKU
UNIVERSAL-VAR-UMB10R4GS2B

Universal UMB1 series AC Inverter for 230V 3ph motor. Operates in standard V/F or Sensorless Vector Control to control the speed of a standard 3PH AC Electric motor

Dynamic Braking (DBr): Internal Brake Switch fitted. (does not have to be used resistor not supplied)

Fixed Keypad with Potentiometer, 2 Analogue Inputs, 4 Digital Inputs, 1 Digital Output, 1 Analogue Output, 1 Relay Contact, 1 x Pulse Input (50kHz Max Input).

Comms: RS485 fieldbus. Modbus protocol

STO Included: Class SIL2 PLd Cat3

EMC Compliance: No integrated EMC filters, optional external filters available

Panel Mounting, ambient operating temperature to 40°C without de-rating

More Information
Power 0.4kW
Supply Voltage 230V 1PH
Output Voltage 230V / 3PH / 50Hz
Output Current 2.5A
Frame Size 1
Display LED
Analog Inputs Max. 1
Analog Outputs Max. 1
Digital Inputs Max. 4
Digital Outputs Max. 1
Relay Outputs 1
Internal Brake YES
Built in EMC Filters NO
Communications MODBUS RTU
IP Rating IP20
