Universal UMB1 11kW 3PH 380-440V IP20

Universal UMB1 11kW 3PH 380-440V IP20

Universal UMA1 1.5kW 3PH 380-440V IP20

Universal UMA1 1.5kW 3PH 380-440V IP20

Universal UMA1 0.75kW 3PH 380-440V IP20

£191.79
3 Phase Inverter IP20 protection EMC Filter C3 Built In Brake Unit Included (Resistor Extra) Control V/F or SVC Sensorless Fire Mode STO
Availability: In stock
SKU
UNIVERSAL-VAR-UMA10R7G4

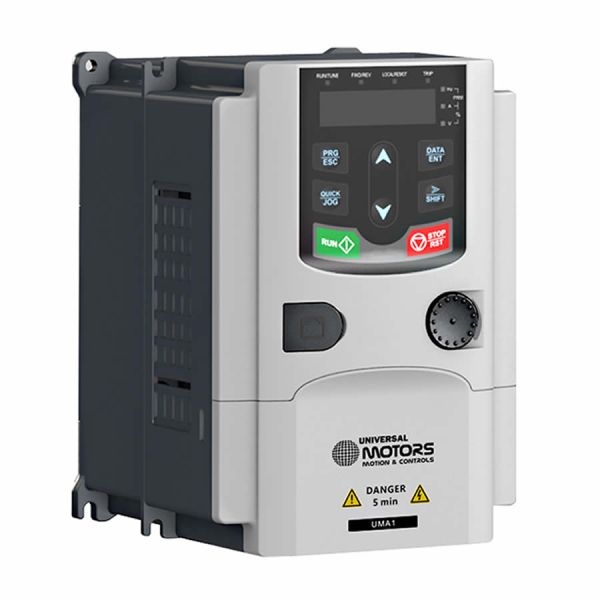

Universal UMB1 series AC Inverter for 400V 3ph motor. Operates in standard V/F or Sensorless Vector Control to control the speed of a standard 3PH AC Electric motor

Dynamic Braking (DBr): Internal Brake Switch fitted. (does not have to be used resistor not supplied)

Fixed Keypad with Potentiometer, 2 Analogue Inputs, 8 Digital Inputs, 2 Analogue Outputs, 1 Digital Output, 2 Relay Contact sets, 1 High Frequency Input (50kHz), 1 High Frequency Output (0-50kHz)

Comms: RS485 fieldbus. Modbus protocol

STO Included: Class SIL2 PLd Cat3

EMC Compliance: No integrated EMC filters, optional external filters available

Panel Mounting, ambient operating temperature to 40°C without de-rating

More Information
Power 0.75kW
Supply Voltage 415V 3PH
Output Voltage 415V / 3PH / 50Hz
Output Current 2.5A
Frame Size 1
Display LED
Analog Inputs Max. 2
Analog Outputs Max. 2
Digital Inputs Max. 9
Digital Outputs Max. 2
Relay Outputs 2
Internal Brake YES
Built in EMC Filters YES
Communications MODBUS RTU
IP Rating IP20
